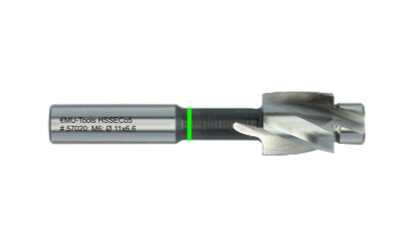

> Flachsenker / Zapfensenker 180° mit festem Führungszapfen
> für Flachsenkungen nach DIN 74 Blatt, Form H, J, K und
DIN 974 Teil 1
> Hergestellt aus HSSE-Material mit 5% Cobalt
mit hoher Warmhärte
| Für Gewinde |
Einsatzbereich | Artikel- Code |
Senk-Ø mm |
Ø Führungs- Zapfen mm |
Gesamt- Länge mm |
Schaft- Ø mm |
Satz Inhalt |
|---|---|---|---|---|---|---|---|
| M 1 | Dulo fein | 57020.0102 | 2,2 | 1,1 | 45 | 2,2 | - |
| M 2 | Dulo fein | 57020.0202 | 4,3 | 2,2 | 56 | 4,3 | - |
| M 2 | Dulo mittel | 57020.0203 | 4,3 | 2,4 | 56 | 4,3 | - |
| M 3 | Kernloch | 57020.0301 | 6,0 | 2,5 | 71 | 5,0 | - |
| M 3 | Dulo fein | 57020.0302 | 6,0 | 3,2 | 71 | 5,0 | - |
| M 3 | Dulo mittel | 57020.0303 | 6,0 | 3,4 | 71 | 5,0 | - |
| M 4 | Kernloch | 57020.0401 | 8,0 | 3,3 | 71 | 5,0 | - |
| M 4 | Dulo fein | 57020.0402 | 8,0 | 4,3 | 71 | 5,0 | - |
| M 4 | Dulo mittel | 57020.0403 | 8,0 | 4,5 | 71 | 5,0 | - |
| M 5 | Kernloch | 57020.0501 | 10,0 | 4,2 | 80 | 8,0 | - |
| M 5 | Dulo fein | 57020.0502 | 10,0 | 5,3 | 80 | 8,0 | - |
| M 5 | Dulo mittel | 57020.0503 | 10,0 | 5,5 | 80 | 8,0 | - |
| M 6 | Kernloch | 57020.0601 | 11,0 | 5,0 | 80 | 8,0 | - |
| M 6 | Dulo fein | 57020.0602 | 11,0 | 6,4 | 80 | 8,0 | - |
| M 6 | Dulo mittel | 57020.0603 | 11,0 | 6,6 | 80 | 8,0 | - |
| M 8 | Kernloch | 57020.0801 | 15,0 | 6,8 | 100 | 12,5 | - |
| M 8 | Dulo fein | 57020.0802 | 15,0 | 8,4 | 100 | 12,5 | - |
| M 8 | Dulo mittel | 57020.0803 | 15,0 | 9,0 | 100 | 12,5 | - |
| M 10 | Kernloch | 57020.1001 | 18,0 | 8,5 | 100 | 12,5 | - |
| M 10 | Dulo fein | 57020.1002 | 18,0 | 10,5 | 100 | 12,5 | - |
| M 10 | Dulo mittel | 57020.1003 | 18,0 | 11,0 | 100 | 12,5 | - |
| M 12 | Kernloch | 57020.1201 | 20,0 | 10,2 | 100 | 12,5 | - |
| M 12 | Dulo fein | 57020.1202 | 20,0 | 13,0 | 100 | 12,5 | - |
| M 12 | Dulo mittel | 57020.1203 | 20,0 | 14,0 | 100 | 12,5 | - |
| Satz FSK | Kernloch | 57020.3121 | - | M3-M12 | |||
| Satz FSF | Dulo fein | 57020.3122 | - | M3-M12 | |||
| Satz FSM | Dulo mittel | 57020.3123 | - | M3-M12 |
