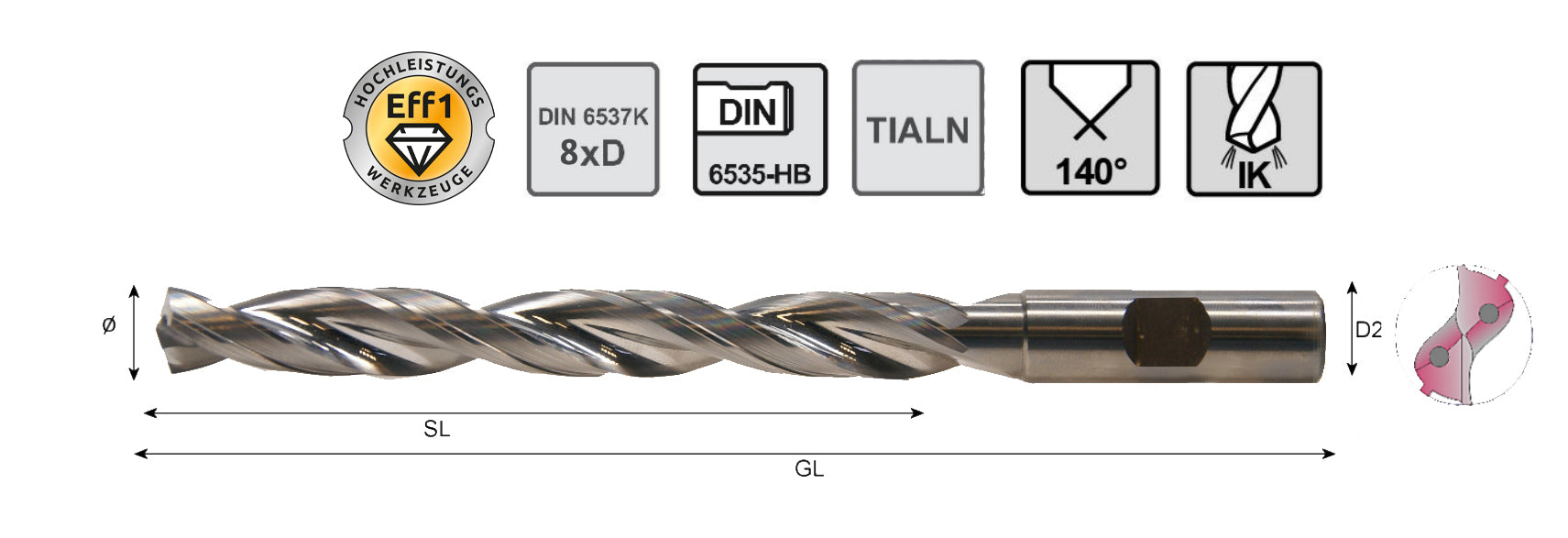

VHM-Präzisions-Hochleistungsbohrer 8xD
mit Innenkühlung
Schaftform HB (Weldon)
mit 4 Führungsfasen für hohe Fluchtgenauigkeit
1120175 Eff1-ALU (blank-poliert)
| D1 | D2 | Art. Nr. | SL | GL |
| 3,00 | 6 | 1120175025 | 34,0 | 72 |
| 3,10 | 6 | 1120175030 | 34,0 | 72 |
| 3,20 | 6 | 1120175035 | 34,0 | 72 |
| 3,30 | 6 | 1120175040 | 34,0 | 72 |
| 3,40 | 6 | 1120175045 | 34,0 | 72 |
| 3,50 | 6 | 1120175050 | 34,0 | 72 |
| 3,60 | 6 | 1120175055 | 34,0 | 72 |
| 3,70 | 6 | 1120175060 | 34,0 | 72 |
| 3,80 | 6 | 1120175065 | 43,0 | 81 |
| 3,90 | 6 | 1120175070 | 43,0 | 81 |
| 4,00 | 6 | 1120175075 | 43,0 | 81 |
| 4,10 | 6 | 1120175080 | 43,0 | 81 |
| 4,20 | 6 | 1120175085 | 43,0 | 81 |
| 4,30 | 6 | 1120175090 | 43,0 | 81 |
| 4,40 | 6 | 1120175095 | 43,0 | 81 |
| 4,50 | 6 | 1120175100 | 43,0 | 81 |
| 4,60 | 6 | 1120175105 | 43,0 | 81 |
| 4,70 | 6 | 1120175110 | 43,0 | 81 |
| 4,80 | 6 | 1120175115 | 57,0 | 95 |
| 4,90 | 6 | 1120175120 | 57,0 | 95 |
| 5,00 | 6 | 1120175125 | 57,0 | 95 |
| 5,10 | 6 | 1120175130 | 57,0 | 95 |
| 5,20 | 6 | 1120175135 | 57,0 | 95 |
| 5,30 | 6 | 1120175140 | 57,0 | 95 |
| 5,40 | 6 | 1120175145 | 57,0 | 95 |
| 5,50 | 6 | 1120175150 | 57,0 | 95 |
| 5,60 | 6 | 1120175155 | 57,0 | 95 |
| 5,70 | 6 | 1120175160 | 57,0 | 95 |
| 5,80 | 6 | 1120175165 | 57,0 | 95 |
| 5,90 | 6 | 1120175170 | 57,0 | 95 |
| 6,00 | 6 | 1120175175 | 57,0 | 95 |
| 6,10 | 8 | 1120175180 | 76,0 | 114 |
| 6,20 | 8 | 1120175185 | 76,0 | 114 |
| 6,30 | 8 | 1120175190 | 76,0 | 114 |
| 6,40 | 8 | 1120175195 | 76,0 | 114 |
| 6,50 | 8 | 1120175200 | 76,0 | 114 |
| 6,60 | 8 | 1120175205 | 76,0 | 114 |
| 6,70 | 8 | 1120175210 | 76,0 | 114 |
| 6,80 | 8 | 1120175215 | 76,0 | 114 |
| 6,90 | 8 | 1120175220 | 76,0 | 114 |
| 7,00 | 8 | 1120175225 | 76,0 | 114 |
| 7,10 | 8 | 1120175230 | 76,0 | 114 |
| 7,20 | 8 | 1120175235 | 76,0 | 114 |
| 7,30 | 8 | 1120175240 | 76,0 | 114 |
| 7,40 | 8 | 1120175245 | 76,0 | 114 |
| 7,50 | 8 | 1120175250 | 76,0 | 114 |
| 7,60 | 8 | 1120175255 | 76,0 | 114 |
| 7,70 | 8 | 1120175260 | 76,0 | 114 |
| 7,80 | 8 | 1120175265 | 76,0 | 114 |
| 7,90 | 8 | 1120175270 | 76,0 | 114 |
| 8,00 | 8 | 1120175275 | 76,0 | 114 |
| 8,10 | 10 | 1120175280 | 95,0 | 142 |
| 8,20 | 10 | 1120175285 | 95,0 | 142 |
| 8,30 | 10 | 1120175290 | 95,0 | 142 |
| 8,40 | 10 | 1120175295 | 95,0 | 142 |
| 8,50 | 10 | 1120175300 | 95,0 | 142 |
| 8,60 | 10 | 1120175305 | 95,0 | 142 |
| 8,70 | 10 | 1120175310 | 95,0 | 142 |
| 8,80 | 10 | 1120175315 | 95,0 | 142 |
| 8,90 | 10 | 1120175320 | 95,0 | 142 |
| 9,00 | 10 | 1120175325 | 95,0 | 142 |
| 9,10 | 10 | 1120175330 | 95,0 | 142 |
| 9,20 | 10 | 1120175335 | 95,0 | 142 |
| 9,30 | 10 | 1120175340 | 95,0 | 142 |
| 9,40 | 10 | 1120175345 | 95,0 | 142 |
| 9,50 | 10 | 1120175350 | 95,0 | 142 |
| 9,60 | 10 | 1120175355 | 95,0 | 142 |
| 9,70 | 10 | 1120175360 | 95,0 | 142 |
| 9,80 | 10 | 1120175365 | 95,0 | 142 |
| 9,90 | 10 | 1120175370 | 95,0 | 142 |
| 10,00 | 10 | 1120175375 | 95,0 | 142 |
| 10,20 | 12 | 1120175385 | 114,0 | 162 |
| 10,50 | 12 | 1120175400 | 114,0 | 162 |
| 10,80 | 12 | 1120175415 | 114,0 | 162 |
| 11,00 | 12 | 1120175425 | 114,0 | 162 |
| 11,50 | 12 | 1120175450 | 114,0 | 162 |
| 11,80 | 12 | 1120175465 | 114,0 | 162 |
| 12,00 | 12 | 1120175475 | 114,0 | 162 |
| 12,50 | 14 | 1120175300 | 133,0 | 178 |
| 12,80 | 14 | 1120175315 | 133,0 | 178 |
| 13,00 | 14 | 1120175325 | 133,0 | 178 |
| 13,50 | 14 | 1120175550 | 133,0 | 178 |
| 13,80 | 14 | 1120175565 | 133,0 | 178 |
| 14,00 | 14 | 1120175575 | 133,0 | 178 |
| 14,50 | 16 | 1120175600 | 152,0 | 203 |
| 14,80 | 16 | 1120175615 | 152,0 | 203 |
| 15,00 | 16 | 1120175625 | 152,0 | 203 |
| 15,50 | 16 | 1120175650 | 152,0 | 203 |
| 15,80 | 16 | 1120175665 | 152,0 | 203 |
| 16,00 | 16 | 1120175675 | 152,0 | 203 |
| 16,50 | 18 | 1120175700 | 171,0 | 222 |
| 16,80 | 18 | 1120175715 | 171,0 | 222 |
| 17,00 | 18 | 1120175725 | 171,0 | 222 |
| 17,50 | 18 | 1120175750 | 171,0 | 222 |
| 17,80 | 18 | 1120175765 | 171,0 | 222 |
| 18,00 | 18 | 1120175775 | 171,0 | 222 |
| 18,50 | 20 | 1120175800 | 190,0 | 243 |
| 18,80 | 20 | 1120175815 | 190,0 | 243 |
| 19,00 | 20 | 1120175825 | 190,0 | 243 |
| 19,50 | 20 | 1120175850 | 190,0 | 243 |
| 19,80 | 20 | 1120175865 | 190,0 | 243 |
| 20,00 | 20 | 1120175875 | 190,0 | 243 |
Lieferzeit 2-3 Werktage
- Zwischenverkauf vorbehalten
